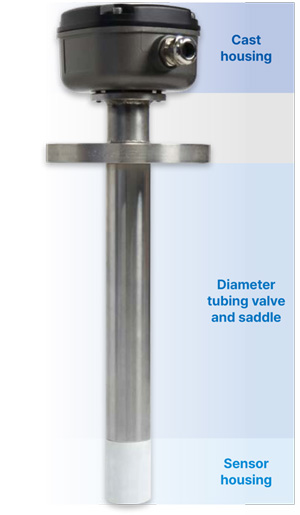

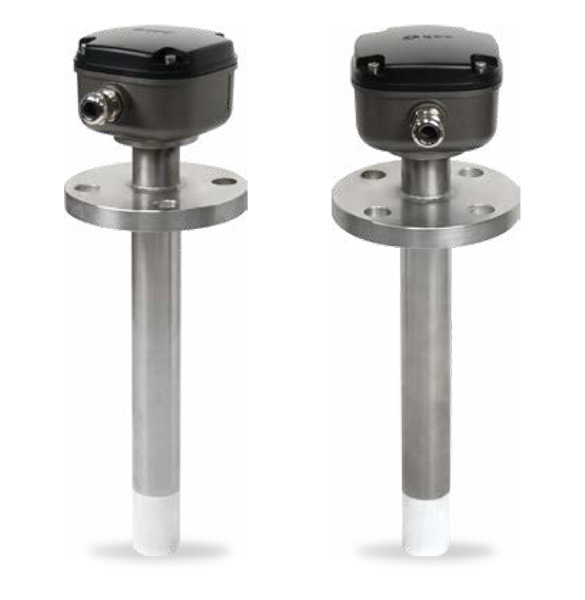

Insertion Type Flow Meter (KFT-8300)
- The insertion-type magnetic flow meter has no rotating body but can accurately measure flow based on Faraday's law of electromagnetic induction. It measures the flow which forms a magnatic field in the pipe, converting the electromotive force proportional to flid flow into frequency signal.
- The KFT-8300 series is easy to install in areas where it’s hard to cut off water supply or there is no bypass pipe for branching method generally in use of saddle or threaded weld fittings.
- The KFT-8300 series is supplied with a built in split valve for easy maintenance. The standard split valve is bronze, but an optional 316 Stainless Steel valve is also available.
Product Features
- Installable on pipes over 50A
- No moving parts
- Flow measurement of conductive fluids from 0.05 to 5 m/s
- Easy to install and maintain thanks to the branching method
Dimensions and Specifications* The size indicated in the blank varies depending on the pipe size.
-

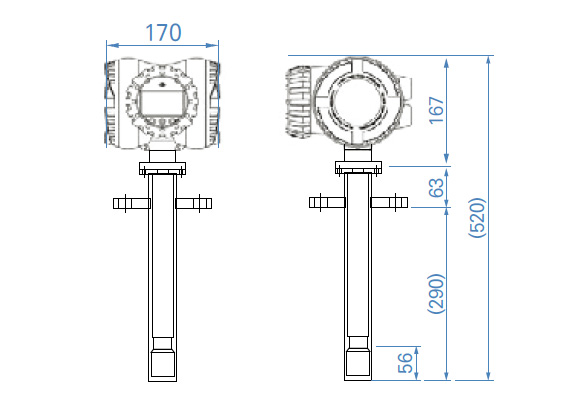

All-in-one -

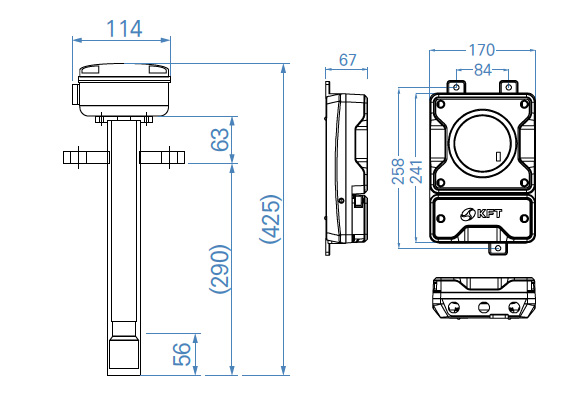

Assembly type
Scroll left/right
| DETECTOR | |
|---|---|
| Sensor | Electromagnetic Induction |
| Pipe Size | Installable on Pipes Over 50A |
| Flow Rate Measurement Range | 0.05 ~ 5 m/s |
| Measuring Fluid | Fluid with Conductivity |
| Fluid Conductivity | 5μS/cm or more |
| Fluid Temperature | -10 ~ 160℃ |
| Ambient Temperature | -20 ~ 60℃ |
| Material |
· Electrode : STS316L · Insulation (lining) : PTFE · Housing : STS304 |
| Protection Class | IP68 |
Scroll left/right

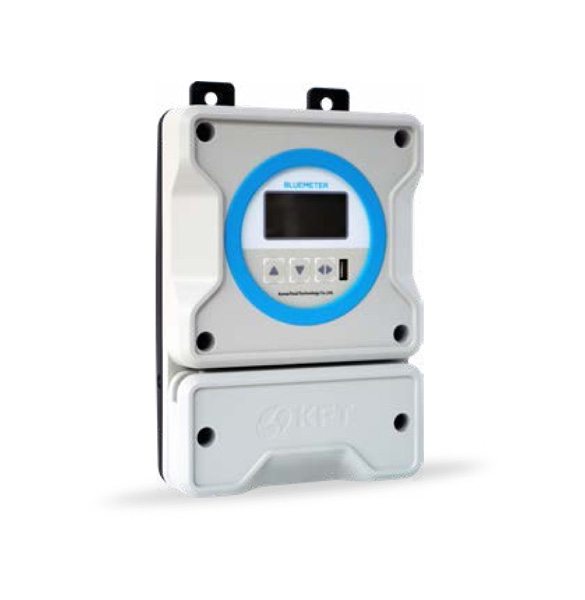

| CONVERTER | |
|---|---|
| Display | Graphic LCD ( instantaneous flow, integrated flow, flow velocity) |
| Accuracy | within ± 1% R.D. |
| Reproducibility | within ±0.5% R.D. |
| Material | Aluminium Die-casting |
| Protection Class | IP65 |
| Function |
· Built-in Data Logger · Displaying and Saving External Analog Signals · Built-in Noise Reduction Circuit · Self-diagnosis · Flow Simulation · Change History of Factor Value |

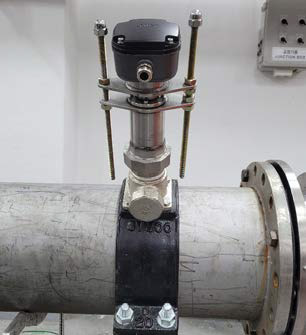

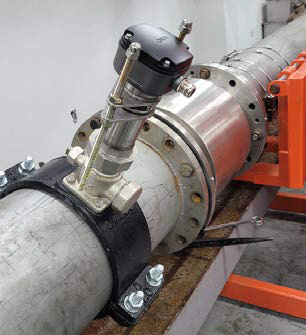

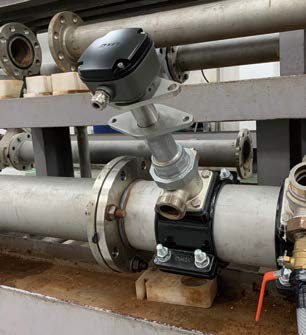

Installation Example
