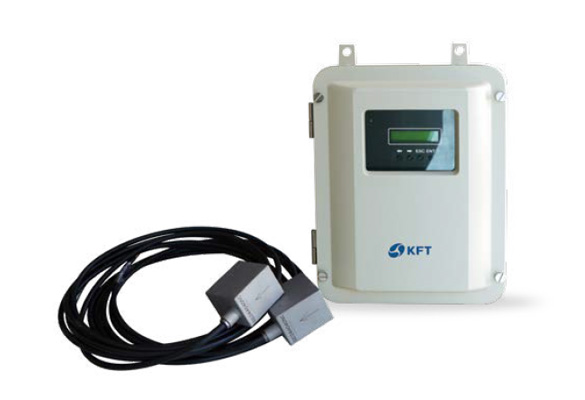

ULTRASONIC FLOWMETER (KFT-9000)
- Installable with no water cut off
- Easy maintenance as attached to the outer wall
- Built-in surge protection / temperature compensation / various internal self-diagnosis functions
- Waterproof rating IP68 (detector), IP66 (converter)
- Up to 4 lines installable
Scroll left/right
| General Specifications | ||
|---|---|---|
Measurement |
Type | Uniform liquid that transmits ultrasonic waves (water, sewage, industrial water, river water, seawater and pure water, etc.) |
| Fluid Temperature |
-20°C ~ 65°C (Standard sensor) 60°C ~ 115°C (High temperature sensor) |
|
| Pipe | Type | Pipes that can stably transmit ultrasonic waves, such as steel pipe, stainless pipe, cast iron pipe, ductile cast iron pipe, PVC pipe, FRPM pipe, etc. |
| Diameter | KFT9000-L : 300A ~ 6,000A KFT9000-S : 25A ~ 400A | |
| Lining | No lining or Tar Epoxy, Mortar, etc. | |
| Measurement Range |
-30m/s~ +30m/s in flow rate conversion | |
| Measurement Accuracy |
±0.5% R.D | |
| Measurement Method |
Time Differential Method | |
| Output Signal |
Pulse signal, (2ports- 1-way & mutual communication mode) | |
| Data Output | Simultaneous output of average and side-line flow rates | |
| Display | Instantaneous flow 4 digits, Integrated flow 7 digits, Other units, etc. | |
| Main Functions |
Self-diagnosis, abnormal flow signal filter, alarm, low flow removal, faulty receiving wave alert, built-in surge protection | |
| Major Specifications |
- Rated Voltage : AC 110/220V 60Hz or 24VDC ±20% - Power Consumption : AC 36VA or less, DC 12W or less - Ambient Temperature : -20 ~ 60°C - Structure : IP68(Detector), IP66(Converter) - Material : Aluminum alloy casting |
|
Dimensions
-

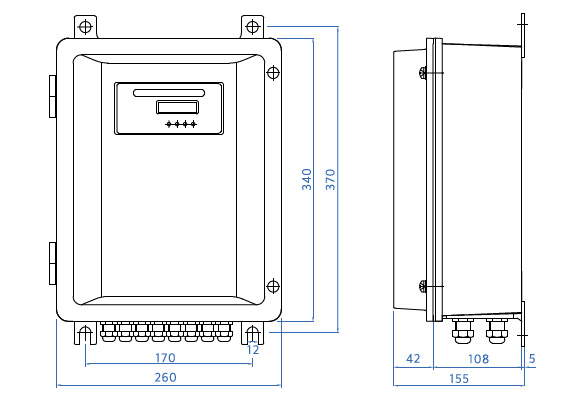

Converter -

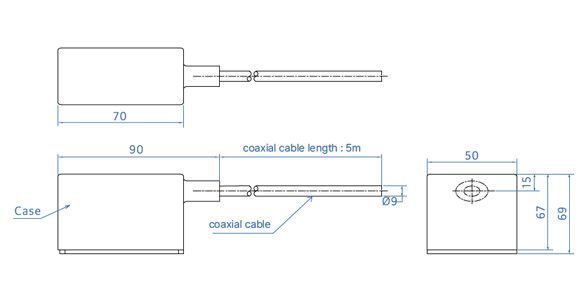

Detector
How to Measure
-

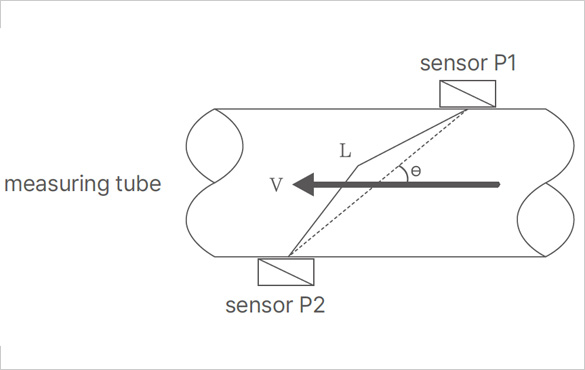

Z-method (through transmission) measurement -

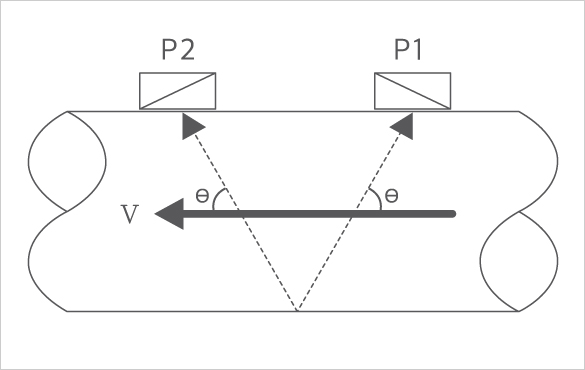

V-method (reflection method) measurement
How to Measure
