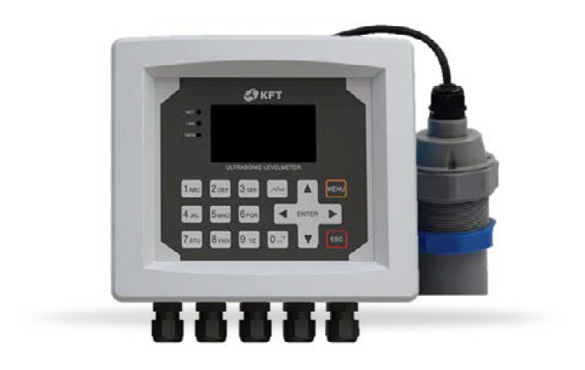

ULTRASONIC FLOWMETER (KFT-UL1000)
- High-precision ultrasonic water level meter
- Strong in environmental resistance such as temperature, humidity and gas
- RS 485, 4~20mA output
- Data storage function (internal storage of inverter)
- Application of signal filtering technology
- Real-time display of output signal
Scroll left/right
| General Specifications | |||
|---|---|---|---|
| Measuring range | 8m(basic), 10m, 12m, 15m, 20m(optional) | Power | AC 220V, 50Hz |
| Accuracy/Dead Band | 0.3% / 0.3m | Operating Temperature | Converter : -20 ~ 60℃,
Detector : -20 ~ 80℃ |
| Resolution/Beam Angle | 1mm / 3 degree | ||
| Display | LCD | Environmental Grade | Converter : IP65, Detector : IP68 |
| Communication and Output Signal | RS 485, 4~20mA | Cable | Basic 10m (recommended), Max. 100m(Optional) |
Dimensions
-

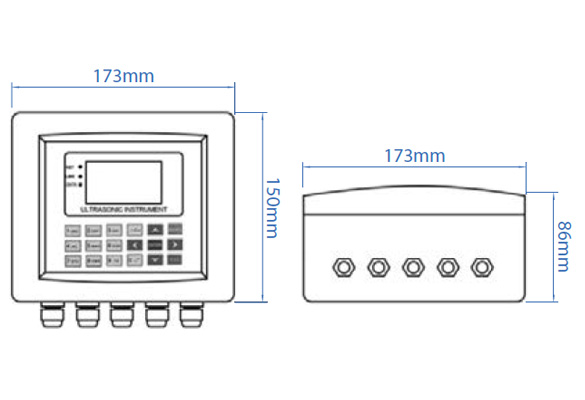

Converter -

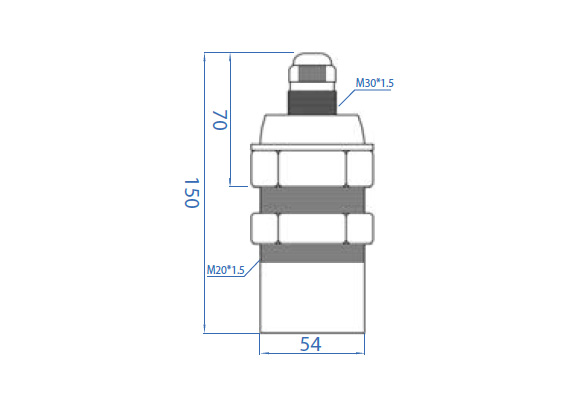

Detector

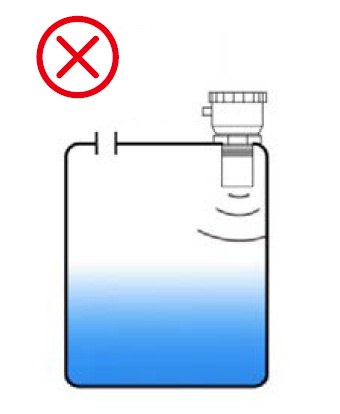

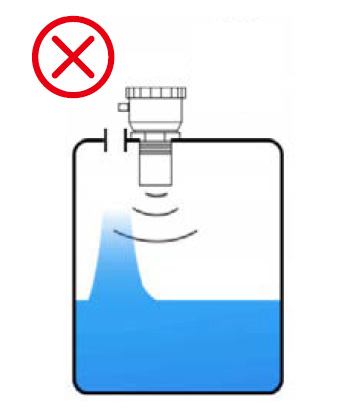

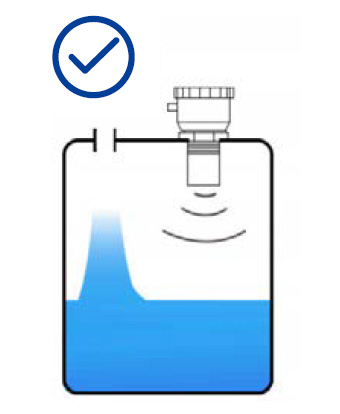

How to Install
